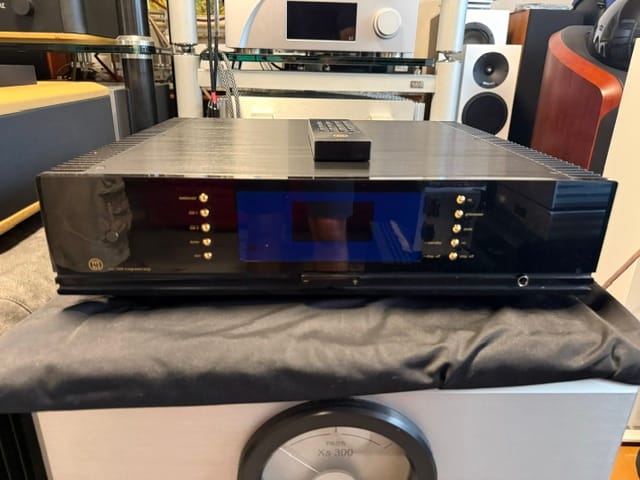

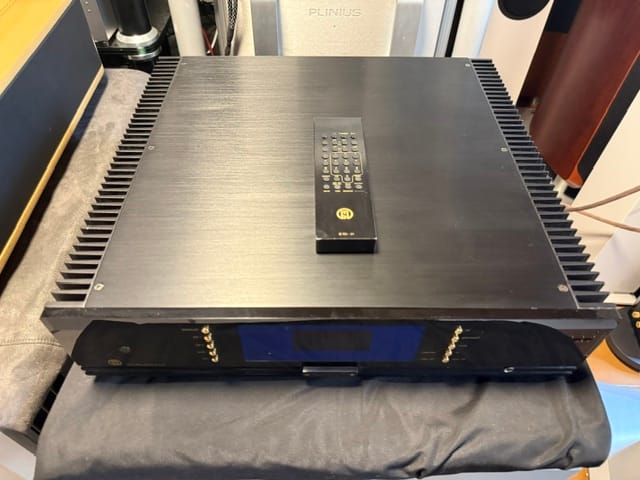

Mbl model 7006

Specifications :
Pre Section

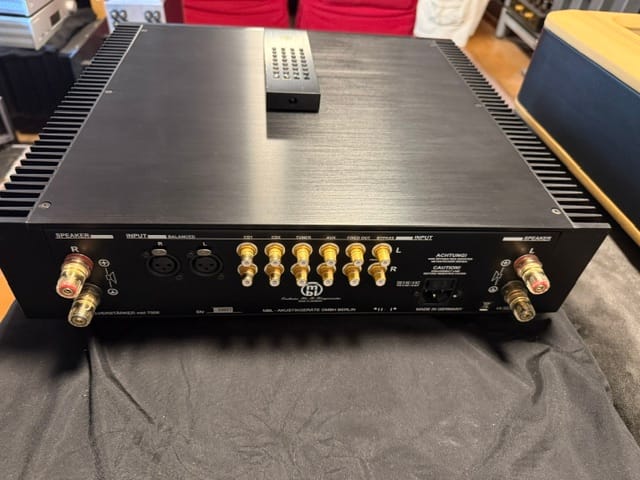

Inputs……………………………………….6 inputs
……………………………………….1 x XLR, 2 x CD, 2 x high level, 1 x processor
Outputs…………………………………….Fixed out
Frequency Range………………………..DC – 400kHz
Output Level………………………………1 Veff to 10 Veff max
Output Impedance……………………….100 ohms
Noise Distortion…………………………..<0.001%
Input Sensitivity…………………………..315mV
Signal to Noise……………………………98/101dB, 1V/25 ohms
……………………………CD: 103/107dB, 1V/25 ohms
Input Impedance………………………….High level: 50k ohms
…………………………..Bypass: 10k ohms
…………………………..CD: 10k ohms
Power Section
Rated Power………………………………120 watts (8 ohms)
……………………………….185 watts (4 ohms)
Output Voltage……………………………35V max
Output Current……………………………20A max
Input Sensitivity…………………………..1.5V, 185 watts, 4 ohms
Channel Separation……………………..90dB
Signal-to-Noise Ratio……………………Unweighted: 111dB
…………………….A-weighted: 115dB
Frequency Response……………………DC – 135kHz / -3 dB
Total Harmonic Distortion + Noise……<0.006%, 4 ohms, 1 kHz, 50 watts
Damping Factor…………………………..300 at 4 ohms
Power Consumption……………………..4VA, sleep mode
……………………..120VA, idle mode
……………………..450VA, maximum
Line Voltage……………………………….230 Vac 50/60 Hz (single voltage)
……………………………….115 Vac, 50/60 Hz
Dimensions(w x d x h)………………….45 x 41 x 12 cm
Weight……………………………………..15kg
