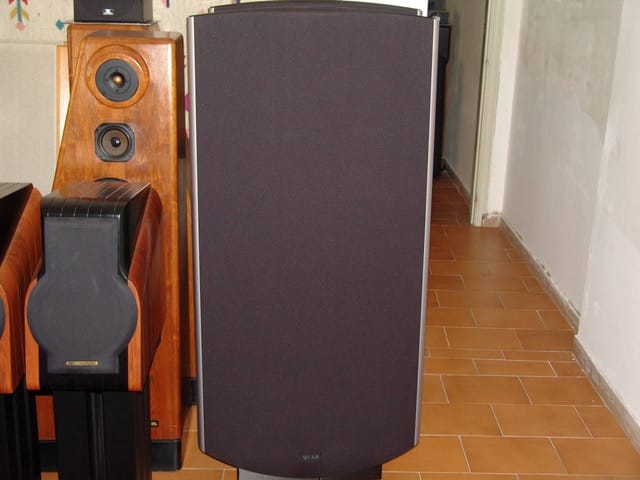

Quad 2905

Specifications :

Format : Full Range Electrostatic

Membrane : 0.5g/m2 Tensioned film

Panel Elements : 8

Time Delay : Progressive concentric rings

Chassis : Heavy duty composite aluminium / steel

Maximum Power Output : 2 N/m2 at 2m on axis

Sensitivity : 1.5u bar per volt referred to 1m

Impedance : 8 ohms nominal

Impedance variation : 4 – 20 Ohms

Maximum continuous input voltage (RMS) – 20Hz to 20kHz : 10V

Programme peak for undistorted output : 40V

Permitted peak input : 55V

Frequnecy response : 28Hz – 23kHz (usable)

Power Consumption : 6 Watts

Dimensions : 1430mm x 695mm x 385mm (add 25-55 mm for

feet/spikes)

Weight : 41.6kg net
